Cast Steel Material Oil Well Blowout Preventer In Pressure Operation

Ask Lasest Price
Brand Name :	Hebei Pantu
Model Number :	7 1/16″ 20,000psi
Certification :	API 16A
Price :	USD 30000 set
Payment Terms :	T/T
Supply Ability :	5 sets per 3 months
Delivery Time :	7 work days

Add to Cart

Product Details
Company Profile

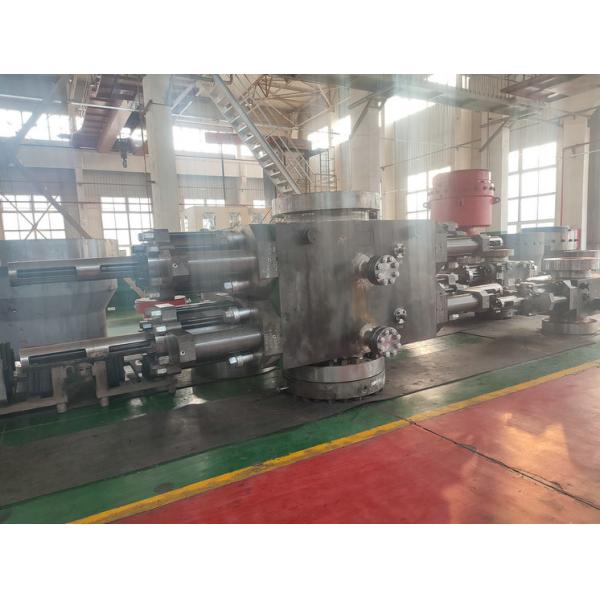

Cast Steel Material Oil Well Blowout Preventer In Pressure Operation

7 1/16″ 20,000psi Bop Double Ram API Standard

Introduction of Bop Double Ram

The ram BOP is designed to seal off the annular between casing and well head. In case of closing, such operation as circulating drilling fluid, releasing pressure and killing the well can be performed by means of the spool beneath.

Bop Double Ram Paremeter

Model	Gals to Open (1 set)	Gals to Close (1 set)	Closing Ratio	Assembly Dimension (in)					Approx Weight(lb)
				Length (L)	Width (W)	Height (H)			Approx Weight(lb)
				Length (L)	Width (W)	Flg×Flg	Std×Std	Flg×Std	Flg×Flg	Std×Std	Flg×Std
4 1/16″-20,000psi(Single RS-FS)	1.10	1.13	10.1	70.71	26.97	33.27	18.11	23.82	3491	3147	3319
4 1/16″-20,000psi(Double RS-FS)	1.10	1.13	10.1	70.71	26.97	46.30	31.14	36.85	5742	5398	5570
7 1/16″-20,000psi(Single RS-FS)	7.05	7.26	13.7	112.05	38.27	48.03	24.02	35.83	10891	8951	9921
7 1/16″-20,000psi(Double RS-FS)	7.05	7.26	13.7	112.05	38.27	70.87	47.24	59.06	19826	17886	18812
11″-20,000psi(Single RS-FS)	42.90	44.8	13.2	137.40	47.87	62.60	32.68	47.64	24030	19335	21682
11″-20,000psi(Double RS-FS)	42.9	44.8	13.2	137.40	47.87	90.55	60.63	75.59	41987	37291	39639
18 3/4″-20,000psi(Double RS-FS)	122	133	10.6	183.46	66.69	/	/	94.13	/	/	87083

Feature

Bop Double Ram seals annular space between tubing and casing or wellbore
Bop Double Ram suspends and stabilizes string
Bop Double Ram with side outlets could be used for choke and blowout
Bop Double Ram can be used in operation under pressure
